Huizhou intelligent automobile industry drives the rapid growth of FPC flexible circuit board

I. Definition and classification of FPC manufacturing industry

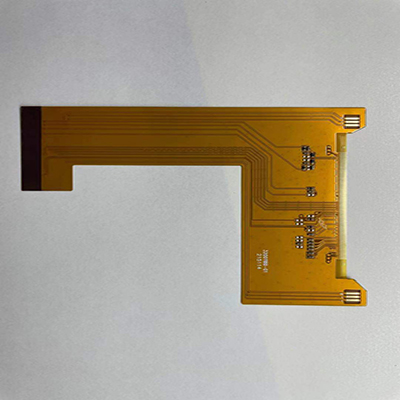

FPC, also known as soft printed PCB board, belongs to printed PCB board (PCB), is an important electronic device interconnection component of electronic equipment. FPC has incomparable advantages of other kinds of PCB, and has a low probability of being replaced in the current application of electronic equipment.

FPC can be divided into polyimide (PI), polyester (PET) and PEN according to the type of sheet plastic film. Among them, polyimide FPC is the most common type of soft board, this kind of raw materials with high temperature resistance, good specifications and reliability, and both mechanical equipment maintenance and excellent electrical equipment dielectric strength of the protective film according to the suppression of the final goods.

According to the number of stacking layers, FPC can be classified into single-sided FPC, two-layer FPC and double-layer FPC. The related production technology is based on single-side FPC production technology and maintained according to the lamination technology. Details are as follows:

Second, FPC manufacturing industry development trend analysis report

The upstream and downstream key of flexible circuit board (FPC) is FCLL (flexible copper-clad plate). FCLL key is composed of three kinds of raw materials, that is, insulating layer base film raw material, metal material electric conductor foil and adhesive. At the present stage, the most common materials used for insulating layer base film of flexible copper clad plate are polyester film (PET plastic film) and polyimide film (PI plastic film). Metal material electric conductor foil mainly consists of electrolytic copper (ED) and calendered copper foil (RA), in which calendered copper foil (RA) is the more critical commodity. Adhesives are the key components of double layer flexible coppers, acrylate adhesives and epoxy resin adhesives are more critical commodities.

In 2015, the global SALES market of FPC was about 11.84 billion USD, accounting for 20.6% of PCB. The total value of PCBS worldwide in 2017 is estimated to be us $65.7 billion, of which THE annual output of FPC is US $15.7 billion. It is estimated that the annual output value of FPC worldwide will reach usd 16.5 billion in 2018.

In 2018, Korea accounted for about half of the world's FPC production. Data show that in 2018, the production of flexible circuit board (FPC) was 93.072 million square meters, compared with 80.03 million square meters in 2017, up 16.3%.

Iii.FPC manufacturing industry demand analysis report

1. Automobile manufacturing

FPC because it can be bent, light weight etc., in recent years as the connecting parts are widely used in car ECU (electronic device control module), such as table board, speakers, screen display information has high data signals and the high trust regulation of machinery and equipment, according to the survey, each car car FPC usage of more than 100 pieces of or so.

In 2018, the sales volume of cars around the world reached 95,634,600, with the continuous improvement of the level of intelligent car system. The intelligent living car needs to be equipped with many body controllers and monitors, and the electronic equipment is far more than the general car. From 2012 to 2020, the total number of on-board display configuration will increase by 233%, exceeding the total production of cars in 2020, more than 100 million/year. The import substitution of vehicle display screen, the development trend of engineering and the improvement of total business scale, the total number and quality of FPC for vehicle display screen clearly put forward higher provisions.

2. Smart wearable devices

With the popularity of AR/VR/ wearable sales market around the world, international large and medium-sized electronic product manufacturers such as Google, Microsoft, iPhone, Samsung and SONY are competing to increase their efforts and product research and development. Leading enterprises in China, such as Baidu Search, Tencent, Qihoo 360 and Xiaomi mobile phone, are also competing to rationally layout the smart wearable device industry.

In 2018, the worldwide sales volume of smart wearable devices exceeded 172.15 million units. In the first half of 2019, the sales volume of smart wearable devices reached 83.8 million units. It is estimated that the sales volume of smart wearable devices will exceed 252 million units by 2021. FPC has the characteristics of lightweight and bendable, which is the best choice for connecting components of smart wearable devices. FPC manufacturing industry will become one of the vested interests in the rapid development of smart wearable devices sales market.

FPC manufacturing industry market competition layout analysis

Because China's FPC manufacturing industry developed too late, foreign companies with first-mover advantages, such as Japan's Fujikura, China's Taiwan Zhending, China's Taiwan Taijun and so on, have produced relatively inseparable business process cooperation and association with middle and downstream customers, occupying China's FPC sales market dominance. Although the difference between the technology and quality of domestic FPC products and foreign companies is significantly smaller, its production capacity and operation scale is still lagging behind foreign companies, so it is in a weak influence in the competition for middle and downstream medium and large high-quality customers.

With the further improvement of the overall strength of China's local well-known electronic equipment brands, in recent years, China's local FPC manufacturers have made great efforts to rationally layout the FPC industry chain.

In order to promote the development trend of intelligent system in China's processing industry, in December 2016, the country implemented the 13th Five-Year Overall Plan for Intelligent Manufacturing System in China, which clearly puts forward that by 2020, the traditional manufacturing industry in China will be updated with intelligence, and in 2025, top priority companies will maintain the transformation and development of intelligent system. Intelligent manufacturing system has become a key driving force for the transformation and development of China's processing industry and the promotion of competitiveness. Especially in the FPC flexible circuit board labor-intensive enterprise transformation and upgrading requirements are great, in China's intelligent manufacturing system manufacturing industry has a broad future.
